🤖myCobot 320 Industrial Collaborative Robot | ROS Open Source Automated Handling
🚀Product introduction

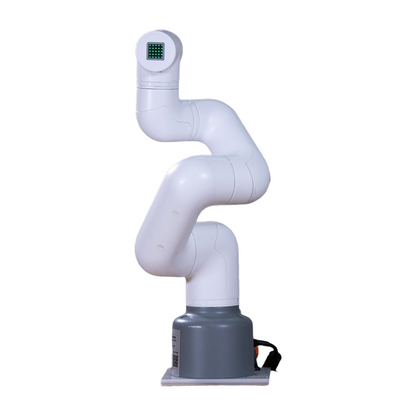

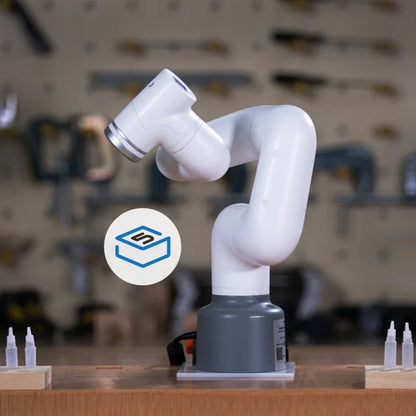

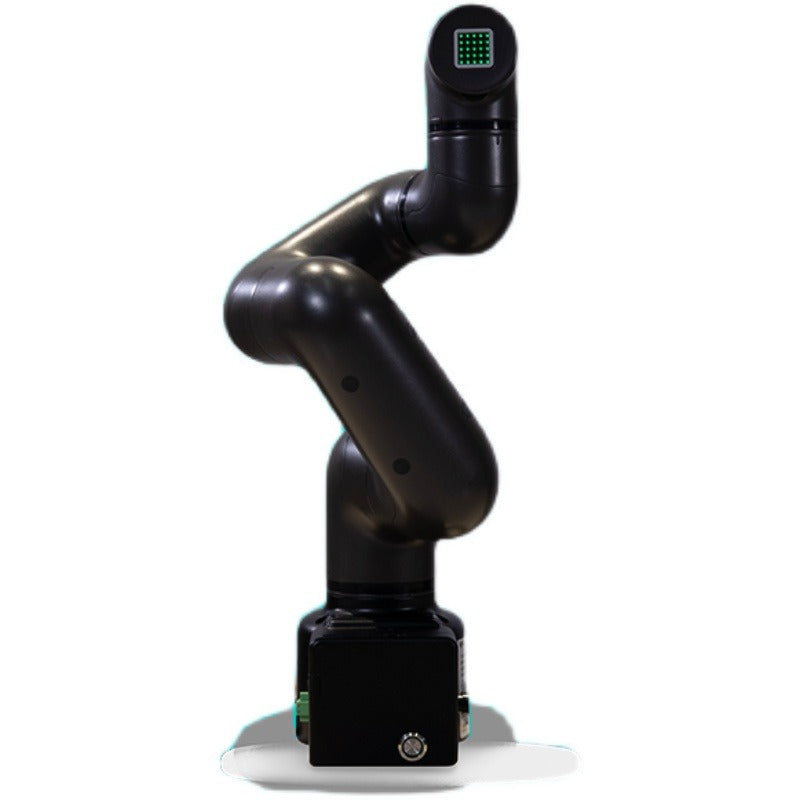

Mycobot 320 is a programmable seven-axis robotic arm that utilizes multi-core collaborative control with Stack-Basic, ESP32-Pico. It supports various programming environments, including Myblockly visual programming, Python programming, and ROS development environment. This versatility enables it to meet the diverse needs and programming levels of users, providing great potential for innovation and experimentation. The payload of Mycobot 320 can reach up to 1 kilogram, the working radius can reach up to 350 millimeters, and the positioning accuracy is within ± 0.5 millimeters. It is an extremely creative development platform for makers and researchers.
⚙️Product features
- Multi-platform integrated controlEquipped with ESP32 processor, supports UIFlow, Python and Arduino programming, providing flexible and convenient operation.

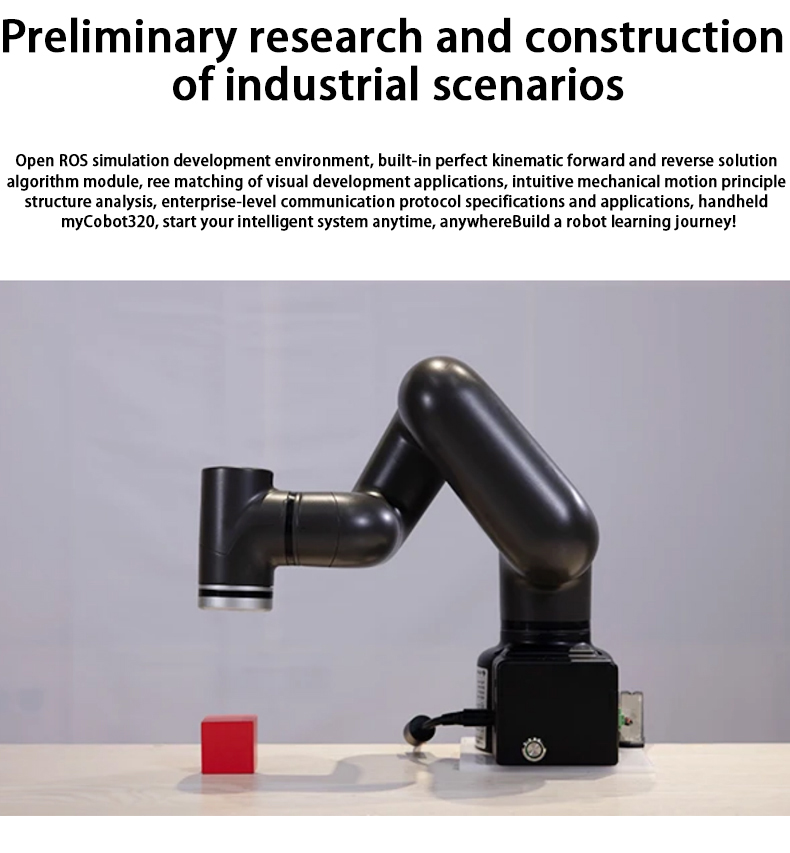

- ROS compatible designSupport the implementation of control and algorithm verification in the ROS environment, reducing the difficulty of setting up the experimental environment and improving the efficiency of research and development.

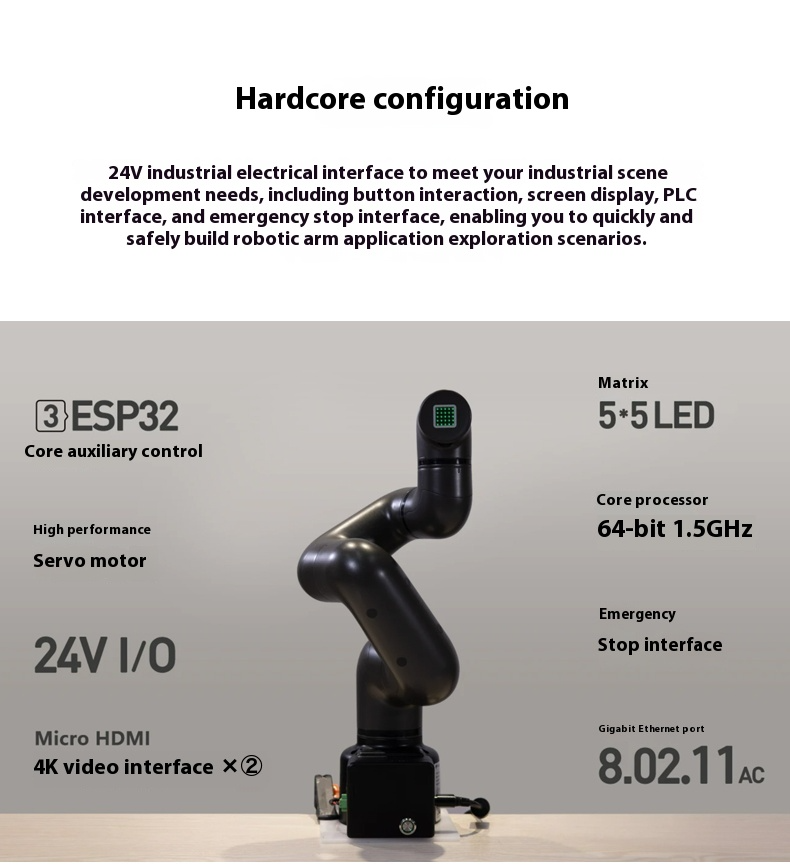

- Industrial grade configurationEquipped with 24V industrial electrical interface, multi-function buttons and high definition display for easy integration and debugging.

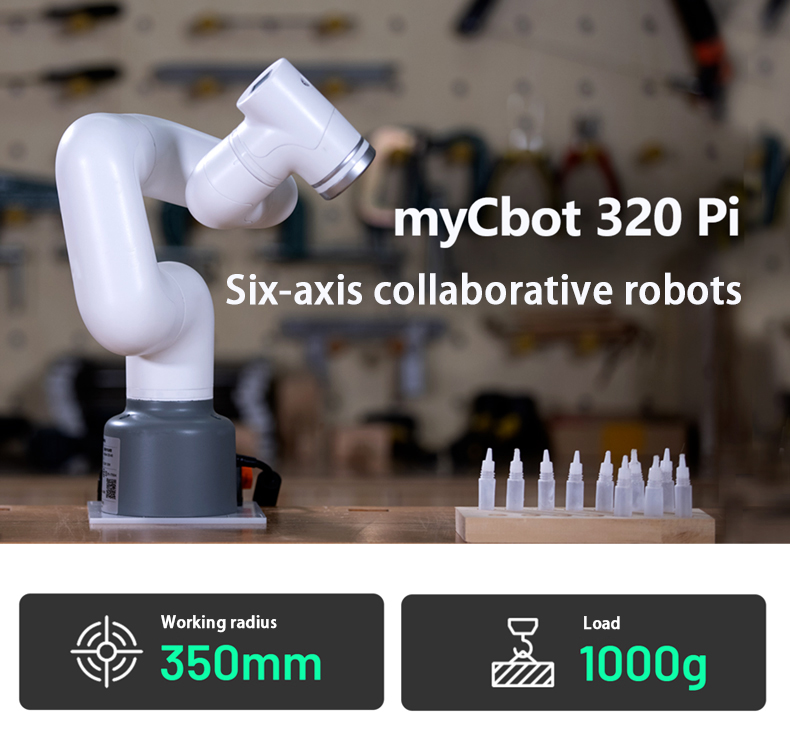

- Superior Performance IndicatorIt has a working radius of 350mm, a maximum load of 1000g, and a repeatability of 1mm, meeting the needs of diverse applications.

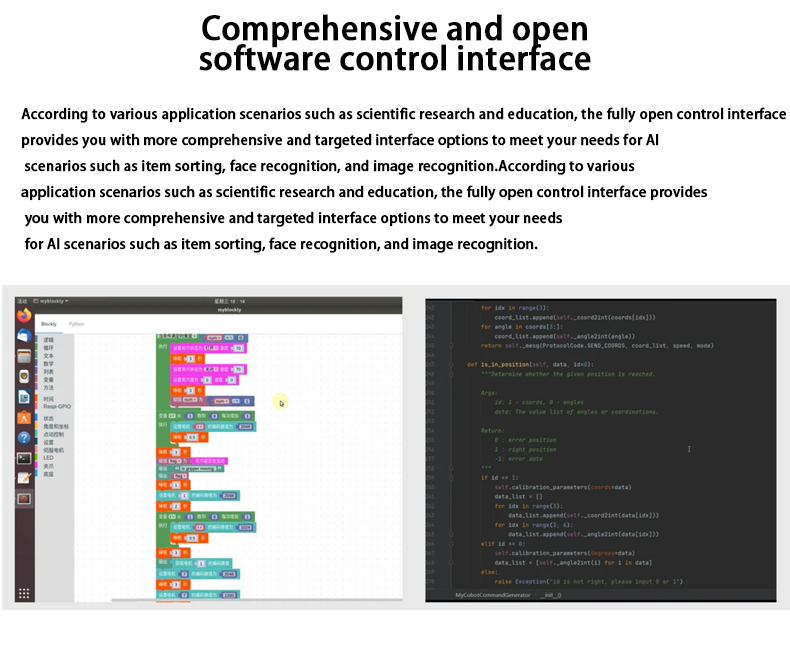

- Open-source interfaces and extensionsSupports a variety of extended applications such as object recognition, facial recognition, and image recognition, providing secondary development space.

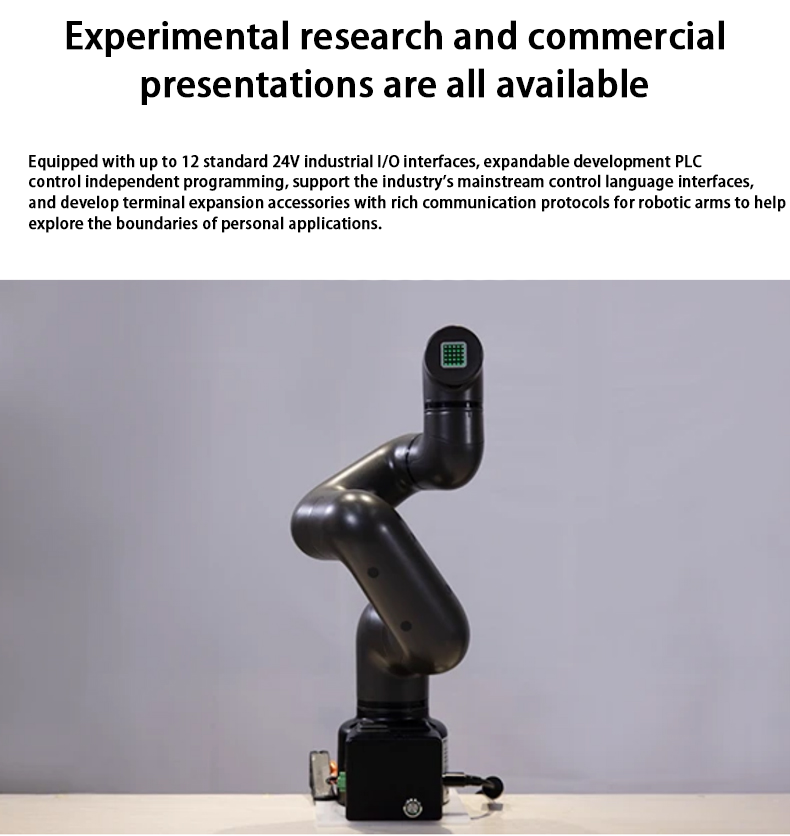

- Rich industrial interfacesBuilt-in 12 industrial I/O interfaces, support autonomous programming and PLC control, and help build an autonomous control system.
📐 Specifications Overview

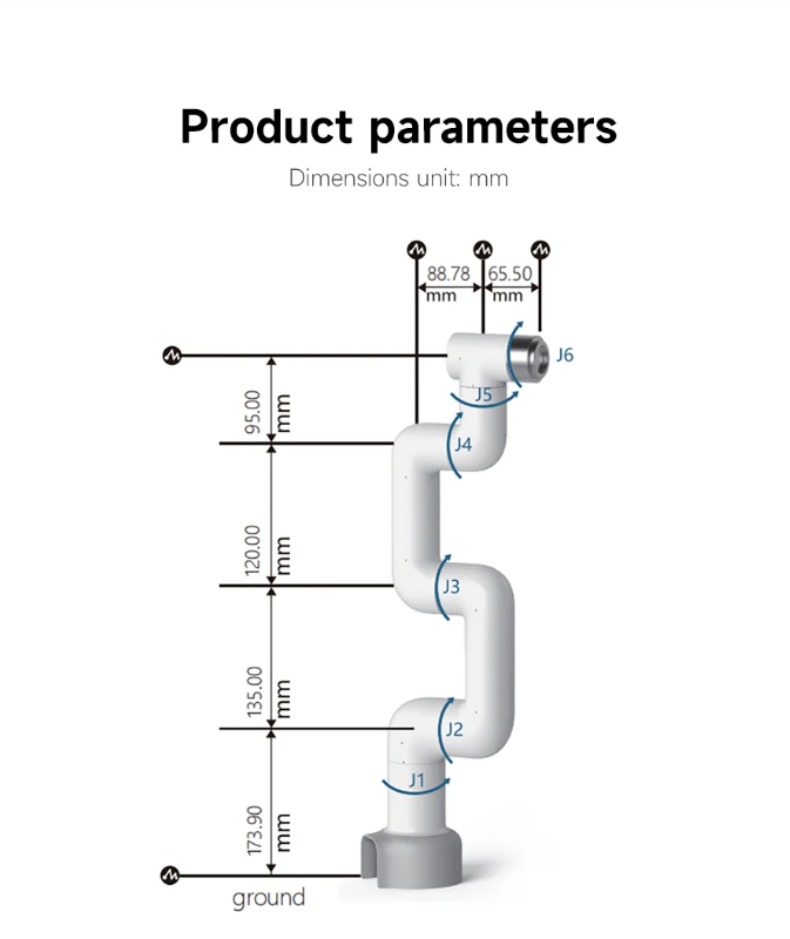

mechanical parameters
Product model: MYCOBOT PRO 320-PI
Payload: 1 kg
Weight: 3 kg
Working radius: 320 mm
repeatability：±0.5 mm
Degrees of freedom: 6
Joint range:
J1：+/-170°
J2：+/-160°
J3：+/-160°
J4：+/-160°
J5：+/-170°
J6：+/-175°
Power input: 24V, 5A
Communication interface: Type-C
Working environment temperature: 0~ 50 ℃
IP rating: IP42
Material: High Performance Nylon
Working environment: 0~ 50 ℃
electrical parameters
SOC：BROADCOM BCM2711CPU: 64-bit, 1.5GHz quad-core processor
Bluetooth/Wireless: Yes
USB：USB 3.0 *2
USB 2.0 *2
Monitor screen: None
HDMI interface: microHDMI * 2
Custom keys: none
Emergency stop switch: Yes
Teaching device or keyboard and mouse: optional
IO interface: 8
Software Platform
Applicable to: independent work
Programming platform: Debian/Ubuntu
ROS/Python: Embedded
Blocky graphical programming: inline
Equipped with camera: optional with any camera
ModelBus RTU: Ethernet
❓ Why choose myCobot 320 Industrial Collaborative Robot:?

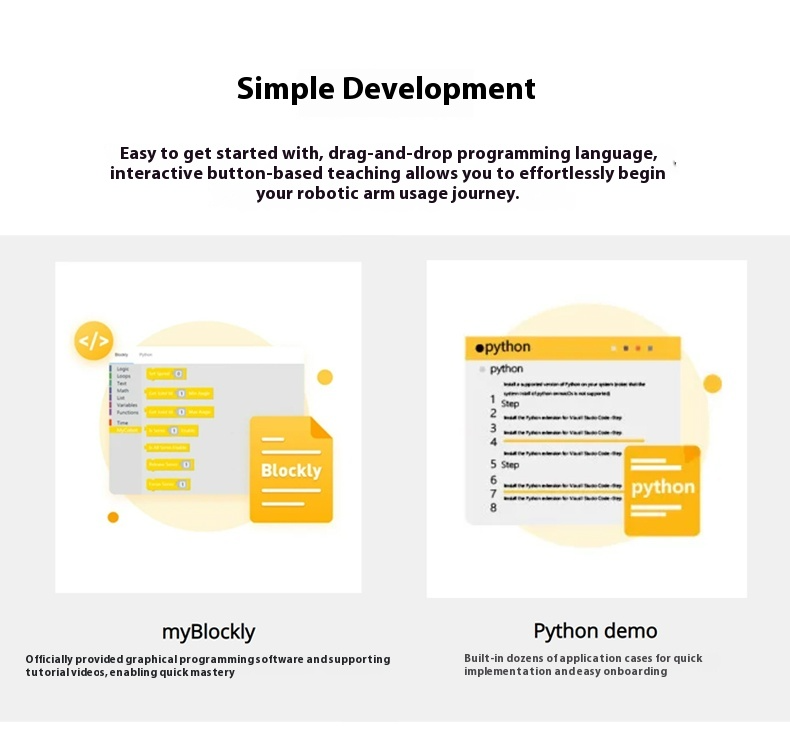

User-friendly programming: Supports multiple environments such as Myblockly, Python, C++, C#, JavaScript, ROS, etc. It enables easy implementation of independe
nt development without the need for professional coding skills.
Strong multi-core control: Integrates M5Stack-Basic, ESP32-Pico and M5Stack-Atom, multi-core collaboration enhances processing capabilities and operational flexibility.
Professional hardware design: Equipped with a 5x5 LED matrix, a 2-inch display, and 12 industrial-grade 24V I/O interfaces, it can support the installation of various actuators at the end, meeting diverse application requirements.
Outstanding performance: With a load capacity of up to 1kg, a working range of 350mm, and a positioning accuracy of ±0.5mm, it supports remote control via Android APP and RS simulation control, facilitating innovation projects with no boundaries.
